Techniques

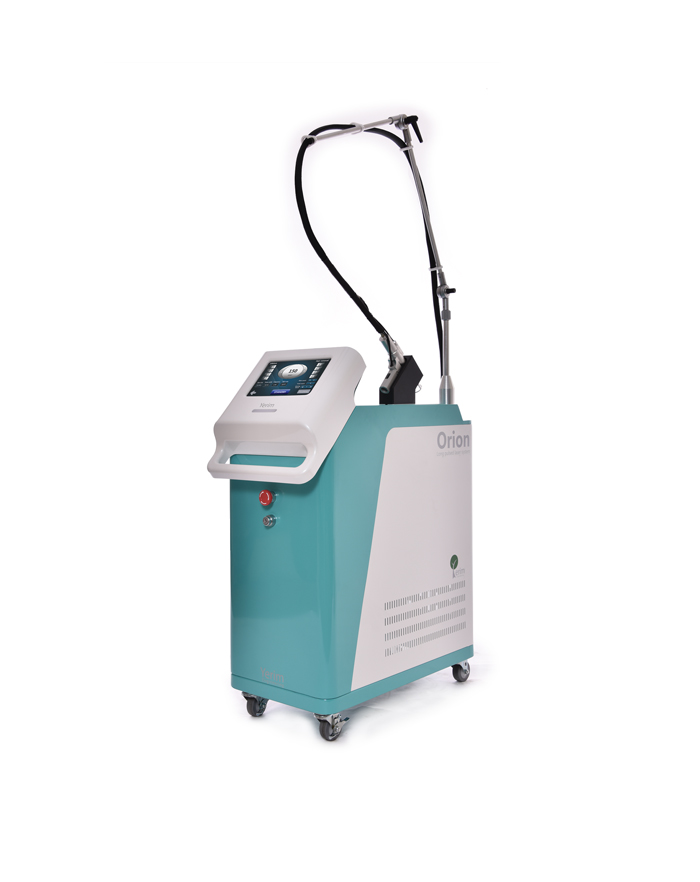

Orion Pro is an application of specialized and latest Technology with the ability to emphasize stability and convenience, thus, various, exact and quick procedure is possible. Also, optimum parameter is provided based on various clinical results.

Triple Long pulsed Laser system
   -Long pulsed Nd:YAG
   -Long pulsed Alexandrite
   -Long Pulsed KTP

Advanced Technology
   -Gas cooling system(ACD)
   -Smart HP
   -Triple wavelength
   -High power supply
   -Compact size

 Applications
 - Long pulsed Nd:YAG
      ● Hair removal
      ● Skin rejuvenation
      ● Vascular Lesion
      ● Leg Veins
      ● Acne
      ● Onychomycosis
      ● Warts
 - Long pulsed Alexandrite
      ● Hair removal
      ● Skin whitening
      ● Pigmented Lesion
      ● Black Head
      ● Melasma
      ● Spot
 - Long Pulsed KTP
      ● Vascular Lesion
      ● Rosacea
      ● Pigmented Lesion
      ● Solar lentigo
      ● Skin whitening
      ● Poikiloderma
      ● Angiomas

Module：Long pulsed Laser system
Wavelength：1064nm/532nm/755nm
Pulse Width：0.3~300ms
Output Energy
-Max 1064nm : 100J
-Max 532nm : 10J
-Max 755nm : 50J
Pulse Rate：Up to 10Hz
Spot Size：2~20mm
Cooling type：Gas cooling(ACD)
Option：755nm
Aiming Beam：<5mW Laser Diode (650nm)
Control panel：Touch screen input interface
Electronic Control：Microprocessor
Beam Delivery：Lens-coupled optical fiber with handpiece
Electrical Requirements：AC 220-240V~ 16A (50/60Hz single phase)
Dimensions：710(H), 360(W), 750(D)
Weight：80Kg
